Original price was: ₹999.₹899Current price is: ₹899.

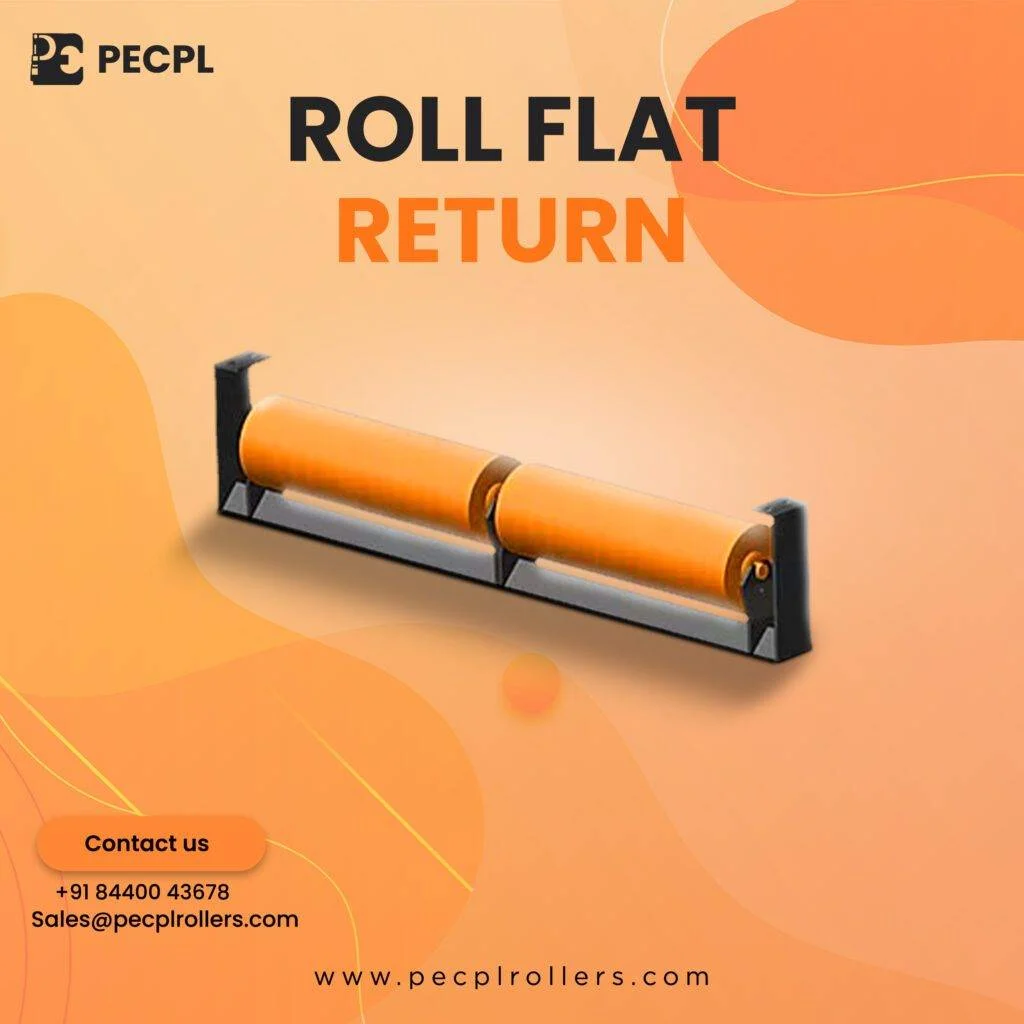

Roll Flat Return
PECPL Conveyors & RollersIdler| Material: | Roll Flat Return Idlers are typically made of high-quality steel, including carbon steel, stainless steel, or galvanized steel, to ensure durability and long service life |
|---|---|
| Application: | Roll Flat Return Idlers are used in conveyor systems to support the returning conveyor belt and maintain proper tension. They are suitable for use in applications that involve the transportation of bulk materials, such as coal, gravel, and ores |
| Structure: | Roll Flat Return Idlers are designed with a flat surface to support the return side of the conveyor belt. They typically feature three or five rollers, with the roller diameter varying depending on the specific application |
| Bearing Type: | Roll Flat Return Idlers are available in various bearing types, including deep groove ball bearings, self-aligning ball bearings, and spherical roller bearings, to accommodate different operating conditions |
| Type: | Roll Flat Return Idlers are available in various types, including single, double, and triple idlers, with different roller configurations to suit different conveyor belt widths and speeds |
| Transport Package: | Roll Flat Return Idlers are typically packed in wooden cases or pallets to ensure safe transportation and handling |
| Samples: | Manufacturers typically provide samples of Roll Flat Return Idlers upon request to enable customers to evaluate the product’s quality and suitability for their application |
|---|
| Customization: | Roll Flat Return Idlers can be customized to meet specific customer requirements, such as different roller configurations, bearing types, and dimensions |
|---|
Description
Basic Info.
Roll Flat Return Idlers are essential components of conveyor systems that support the return side of the conveyor belt and maintain proper tension. They are made of high-quality steel and are available in various bearing types, roller configurations, and dimensions.
Product Description
Product Description
Roll Flat Return Idlers are designed to support the returning conveyor belt and maintain proper tension. They feature a flat surface with three or five rollers and are made of high-quality steel to ensure durability and long service life. Roll Flat Return Idlers are available in various bearing types, roller configurations, and dimensions to suit different conveyor belt widths and speeds.
Roller Properties When selecting Roll Flat Return Idlers, it is essential to consider the conveyor belt width, speed, and the material being transported. The roller diameter and spacing should be chosen to ensure proper belt support and tension. | |
Product Name Conveyor Roller | Product Name : Roll Flat Return |
Diameter | 76-219mm |
Length | 190-3500mm |
Color | OEM |
Bearing No | 6204, 6205, 6305, 6306, 6307, 630 |
Standard | ISO/DIN |
Tube Material | Carbon Steel |
Shaft Material | Cold Drawing Round Steel |
Shaft Diameter | 20mm, 30mm , 35mm, 40mm |
Pipe Thickness | 3mm,35mm, 4mm&OEM |
Specification
D(mm) | L(mm) | Bearing model |
89 | 180,190,200,235,240,250,275,280,305,215,350,375,380,455,465,600,750,950,1150 | 204 |
108 | 190,200,240,250,305,315,360,375,380,455,465,525,530,600,700,750,790,800,950,1150,1400,1600 | 204 205 305 306 |
133 | 305,375,380,455,465,525,530,600,700,750,790,800,900,950,1000,1100,1150,1400,1600,1800,2000,2200 | 205 305 306 |
159 | 375,380,455,465,525,530,600,700,750,790,800,900,1000,1050,1100,1120,1150,1250,1400,1500,1600,1700, 1800,2000,2200,2500,2800,3000,3150 | 305 306 308 |
193.7 | 2200,2500,2800,3000,3150,3350 | 308 310 |
217 | 600,640,1050,1120,1600,1700,3150,3350 | 308 310 |
D(mm) | L(mm) | Bearing model |
89 | 190,200,230,240,280,305,315,375,380,455,465,600,750,950,1150 | 204 |
108 | 190,200,240,250,305,315,375,380,455,465,525,600,700,750,800,950,1150,1400 | 205 |
133 | 305,350,375,380,455,525,530,600,700,790,800,950,1150,1400,1600 | 305 |
159 | 375,380,455,465,525,600,630,640,670,700,750,790,800,900,950,1050,1120,1150,1400,1600 | 306 308 |
PECPL Rollers & Conveyors
Bridging the gap between material handling and technology. Change the way of conveying by using Precisely made bulk material handling conveyor system. Customized according to your need. Idler Roller manufacturer.
Q: What is a Roll Flat Return Idler?
A: A Roll Flat Return Idler is a component of a conveyor system that supports the returning conveyor belt and maintains proper tension.
Q: What are Roll Flat Return Idlers made of?
A: Roll Flat Return Idlers are typically made of high-quality steel, including carbon steel, stainless steel, or galvanized steel.
Q: What is the function of Roll Flat Return Idlers?
A: Roll Flat Return Idlers support the returning conveyor belt and maintain proper tension to ensure smooth and efficient operation of the conveyor system.
Q: Can Roll Flat Return Idlers be customized?
A: Yes, Roll Flat Return Idlers can be customized to meet specific customer requirements, such as different roller configurations, bearing
