Original price was: ₹1,300.Current price is: ₹1,099.

POLYURETHANE DISC ROLLER

PECPL Conveyors & RollersRollers
Material:Polyurethane disc rollers are typically made of high-quality polyurethane material that provides excellent durability, wear resistance, and chemical resistance
Application:Polyurethane disc rollers are widely used in various industries, including packaging, printing, material handling, and conveyor systems. These rollers are used to transport or move materials, products, or packages efficiently and smoothly

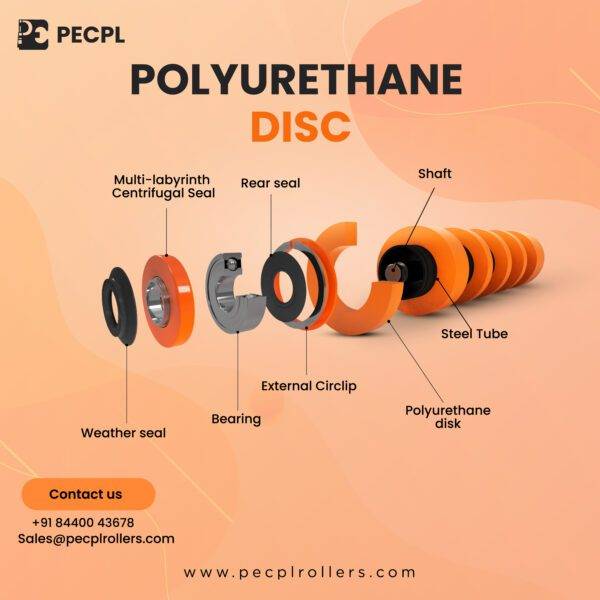

Structure:Polyurethane disc rollers have a simple structure, consisting of a polyurethane disc-shaped outer shell and a metal core. The metal core provides strength and support to the roller while the polyurethane outer layer provides excellent friction, abrasion, and chemical resistance
Bearing Type:Polyurethane disc rollers typically have ball bearings that provide smooth rotation and reduce friction during operation
Type:Polyurethane disc rollers are available in different types, including single-disc rollers, double-disc rollers, and multi-disc rollers. These rollers come in different sizes and can be customized based on the application requirements
Transport Package:Polyurethane disc rollers are typically packaged in a way that ensures they are protected from damage during transportation. The packaging can include foam inserts, cardboard boxes, or pallets
Samples:
Samples of polyurethane disc rollers can be provided upon request. The samples can be used for testing and evaluation purposes before making a bulk order

|Request Sample

Customization:
Polyurethane disc rollers can be customized based on specific application requirements. Customization options can include size, shape, color, and hardness

|Customized Request

- +

Description

Basic Info.

Polyurethane disc rollers are used in various industries to transport materials, products, or packages efficiently and smoothly. They are made of high-quality polyurethane material and have a simple structure consisting of a polyurethane outer layer and a metal core. They typically have ball bearings that provide smooth rotation and reduce friction during operation.

Trademark
Perfect Engineering Components Pvt. Ltd.
Origin
India
HS Code
8431390000

Product Description

Product Description

Polyurethane disc rollers are durable, wear-resistant, and provide excellent chemical resistance. They are available in different types and sizes and can be customized based on specific application requirements. These rollers are widely used in packaging, printing, material handling, and conveyor systems.

PECPL Rollers & Conveyors
Roller Properties

Polyurethane disc rollers have excellent roll picking properties due to their high friction and abrasion resistance. They can transport materials, products, or packages efficiently and smoothly without slipping or skidding.

Product Name Conveyor Roller
Product Name : Polyurethane Disc Roller
Diameter
76-219mm
Length
190-3500mm
Color
OEM
Bearing No
6204, 6205, 6305, 6306, 6307, 630
Standard
ISO/DIN
Tube Material
Carbon Steel
Shaft Material
Cold Drawing Round Steel
Shaft Diameter
20mm, 30mm , 35mm, 40mm
Pipe Thickness
3mm,35mm, 4mm&OEM

Specification

Factory Price Impact Spiral Return Conveyor Roller for Material Handling Equipment PartsFactory Price Impact Spiral Return Conveyor Roller for Material Handling Equipment Parts
D(mm)
L(mm)
Bearing model
89
180,190,200,235,240,250,275,280,305,215,350,375,380,455,465,600,750,950,1150
204
108
190,200,240,250,305,315,360,375,380,455,465,525,530,600,700,750,790,800,950,1150,1400,1600
204 205 305 306
133
305,375,380,455,465,525,530,600,700,750,790,800,900,950,1000,1100,1150,1400,1600,1800,2000,2200
205 305 306
159
375,380,455,465,525,530,600,700,750,790,800,900,1000,1050,1100,1120,1150,1250,1400,1500,1600,1700,
1800,2000,2200,2500,2800,3000,3150
305 306 308
193.7
2200,2500,2800,3000,3150,3350
308 310
217
600,640,1050,1120,1600,1700,3150,3350
308 310
Factory Price Impact Spiral Return Conveyor Roller for Material Handling Equipment Parts
D(mm)
L(mm)
Bearing model
89
190,200,230,240,280,305,315,375,380,455,465,600,750,950,1150
204
108
190,200,240,250,305,315,375,380,455,465,525,600,700,750,800,950,1150,1400
205
133
305,350,375,380,455,525,530,600,700,790,800,950,1150,1400,1600
305
159
375,380,455,465,525,600,630,640,670,700,750,790,800,900,950,1050,1120,1150,1400,1600
306 308
Applications

Polyurethane disc rollers are used in various applications, including:

Conveyor systems: They are used to transport materials and products along a conveyor belt.

Packaging: They are used to transport packages on packaging machines.

Printing: They are used to transport paper and other materials in printing presses.

Material handling: They are used to move materials and products in material handling systems.

POLYURETHANE DISC ROLLER
Company Information
POLYURETHANE DISC ROLLER – DELIVERING QUALITY SINCE 1989
PECPL Rollers & Conveyors
Bridging the gap between material handling and technology. Change the way of conveying by using Precisely made bulk material handling conveyor system. Customized according to your need.  Idler Roller manufacturer.
FAQ

What is the maximum load capacity of polyurethane disc rollers?

Answer: The maximum load capacity of polyurethane disc rollers depends on the size, type, and application requirements.

What is the temperature range for polyurethane disc rollers?

Answer: Polyurethane disc rollers can operate in a temperature range of -40°C to 80°C.

Can polyurethane disc rollers be used in wet environments?

Answer: Yes, polyurethane disc rollers can be used in wet environments as they provide excellent chemical resistance and are resistant to water and moisture.
