Original price was: ₹1,500.Current price is: ₹979.

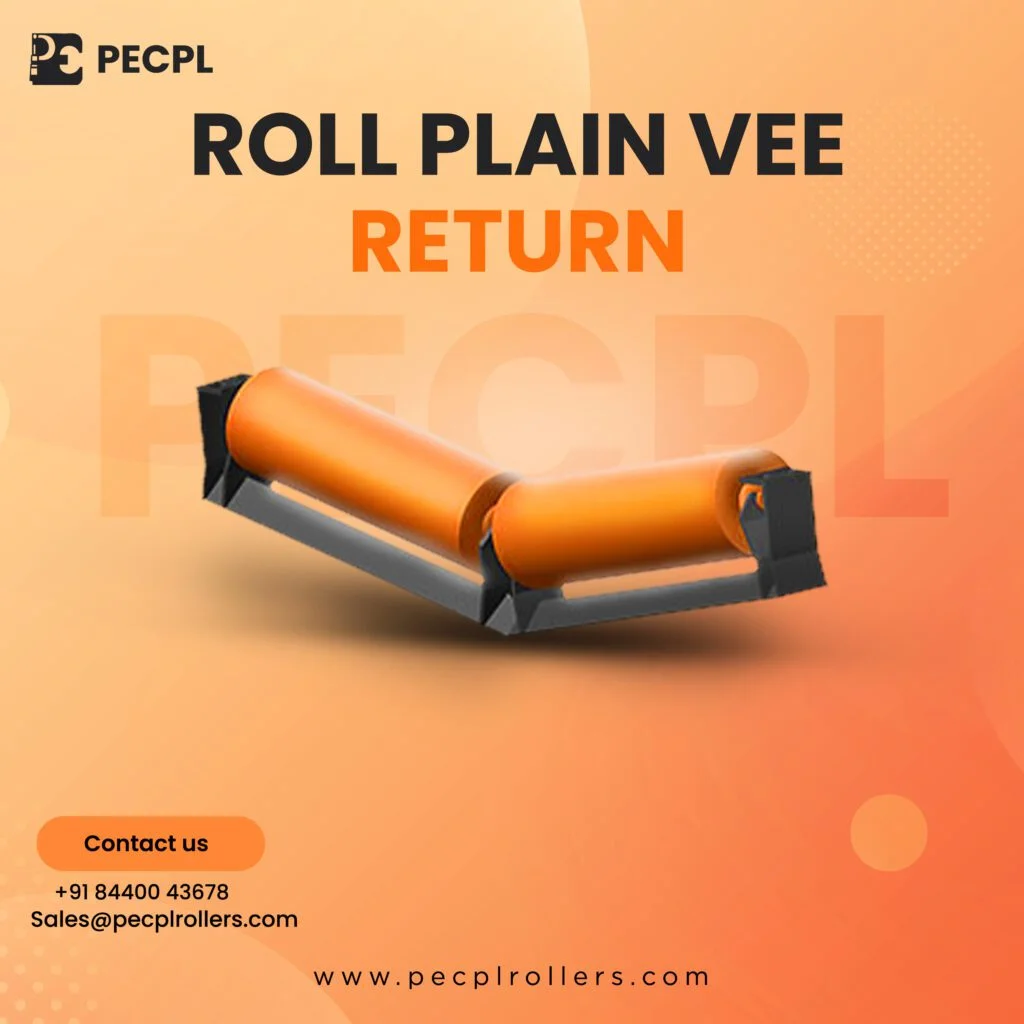

Roll Plain Vee Return

PECPL Conveyors & RollersIdler
Material:The Roll Plain Vee Return idler is typically made of steel or other durable materials to withstand the weight and abrasiveness of the materials being transported on the conveyor belt
Application:This type of idler is used in various industries such as mining, agriculture, and manufacturing for conveying bulk materials such as ores, grains, and industrial products
Structure:The Roll Plain Vee Return idler has a cylindrical shape and a vee-shaped groove in the center, which is designed to guide and support the return side of the conveyor belt. It is usually mounted on a frame or bracket
Bearing Type:Roll Plain Vee Return idlers typically use deep groove ball bearings or self-aligning ball bearings for smooth and efficient rotation
Type:There are various types of Roll Plain Vee Return idlers available in the market, including flat carrying idlers, troughing idlers, and impact idlers. The choice of idler type depends on the specific requirements of the conveyor system
Transport Package:Roll Plain Vee Return idlers are usually packaged in sturdy crates or pallets for safe and secure transportation
Samples:
Samples may be available from manufacturers upon request

|Request Sample

Customization:
Roll Plain Vee Return idlers can be customized to meet specific requirements, such as different diameters, materials, and bearing types

|Customized Request

- +

Description

Basic Info.

Material: Steel or other durable materials

Application: Material handling, conveying bulk materials

Structure: Cylindrical with vee-shaped groove

Bearing Type: Deep groove ball bearings or self-aligning ball bearings

Type: Flat carrying idlers, troughing idlers, impact idlers

Transport Package: Sturdy crates or pallets

Customization: Available upon request

Trademark
Perfect Engineering Components Pvt. Ltd.
Origin
India
HS Code
8431390000

Product Description

Product Description

The Roll Plain Vee Return idler is an essential component of conveyor systems used in various industries for conveying bulk materials. It is designed to guide and support the return side of the conveyor belt, ensuring smooth and efficient operation. The idler has a cylindrical shape with a vee-shaped groove in the center and is made of steel or other durable materials. It typically uses deep groove ball bearings or self-aligning ball bearings for smooth rotation. There are different types of Roll Plain Vee Return idlers available, and customization is available to meet specific requirements.

PECPL Rollers & Conveyors
Roller Properties

When selecting Roll Plain Vee Return idlers, it is important to consider factors such as diameter, load capacity, bearing type, and construction materials. The choice of idler type should also be based on the specific requirements of the conveyor system, such as the type of material being transported and the conveyor’s speed and angle.

Product Name Conveyor Roller
Product Name : Roll Plain Vee Return
Diameter
76-219mm
Length
190-3500mm
Color
OEM
Bearing No
6204, 6205, 6305, 6306, 6307, 630
Standard
ISO/DIN
Tube Material
Carbon Steel
Shaft Material
Cold Drawing Round Steel
Shaft Diameter
20mm, 30mm , 35mm, 40mm
Pipe Thickness
3mm,35mm, 4mm&OEM

Specification

Factory Price Impact Spiral Return Conveyor Roller for Material Handling Equipment PartsFactory Price Impact Spiral Return Conveyor Roller for Material Handling Equipment Parts
D(mm)
L(mm)
Bearing model
89
180,190,200,235,240,250,275,280,305,215,350,375,380,455,465,600,750,950,1150
204
108
190,200,240,250,305,315,360,375,380,455,465,525,530,600,700,750,790,800,950,1150,1400,1600
204 205 305 306
133
305,375,380,455,465,525,530,600,700,750,790,800,900,950,1000,1100,1150,1400,1600,1800,2000,2200
205 305 306
159
375,380,455,465,525,530,600,700,750,790,800,900,1000,1050,1100,1120,1150,1250,1400,1500,1600,1700,
1800,2000,2200,2500,2800,3000,3150
305 306 308
193.7
2200,2500,2800,3000,3150,3350
308 310
217
600,640,1050,1120,1600,1700,3150,3350
308 310
Factory Price Impact Spiral Return Conveyor Roller for Material Handling Equipment Parts
D(mm)
L(mm)
Bearing model
89
190,200,230,240,280,305,315,375,380,455,465,600,750,950,1150
204
108
190,200,240,250,305,315,375,380,455,465,525,600,700,750,800,950,1150,1400
205
133
305,350,375,380,455,525,530,600,700,790,800,950,1150,1400,1600
305
159
375,380,455,465,525,600,630,640,670,700,750,790,800,900,950,1050,1120,1150,1400,1600
306 308
Applications

Roll Plain Vee Return idlers are used in various industries such as mining, agriculture, and manufacturing for conveying bulk materials such as ores, grains, and industrial products. They are typically mounted on a frame or bracket and placed at regular intervals along the conveyor system.

Roll Plain Vee Return
Company Information
Roll Plain Vee Return – DELIVERING QUALITY SINCE 1989
PECPL Rollers & Conveyors
Bridging the gap between material handling and technology. Change the way of conveying by using Precisely made bulk material handling conveyor system. Customized according to your need.  Idler Roller manufacturer.
FAQ
Q1. How Can I have a sample order for roll plain vee return ?
Yes, we welcome sample order to test and check quality. Just mail [email protected] or contact us  +91 844-004-3678
Q2. What about the lead time?
1) 2–3 days for sample
2) 20–30 days for mass production. If urgent, we have green channel.
Q3. Do you have any MOQ limit for roll plain vee return order?
Low MOQ, 1pc for sample checking is available
Q4. Is it OK to print my logo on roll plain vee return product?
Yes. Please inform us your logo or design before mass production
Q5. How to guarantee your quality?
We are one of the top suppliers of International famous mining company over years. Excellent quality is well accepted.
Please contact us for more details.

Q6. What is the function of a Roll Plain Vee Return idler?

A: The Roll Plain Vee Return idler is designed to guide and support the return side of a conveyor belt, ensuring smooth and efficient operation.

Q7. What materials are Roll Plain Vee Return idlers made of?

A: Roll Plain Vee Return idlers are typically made of steel
