Original price was: ₹1,199.Current price is: ₹1,099.

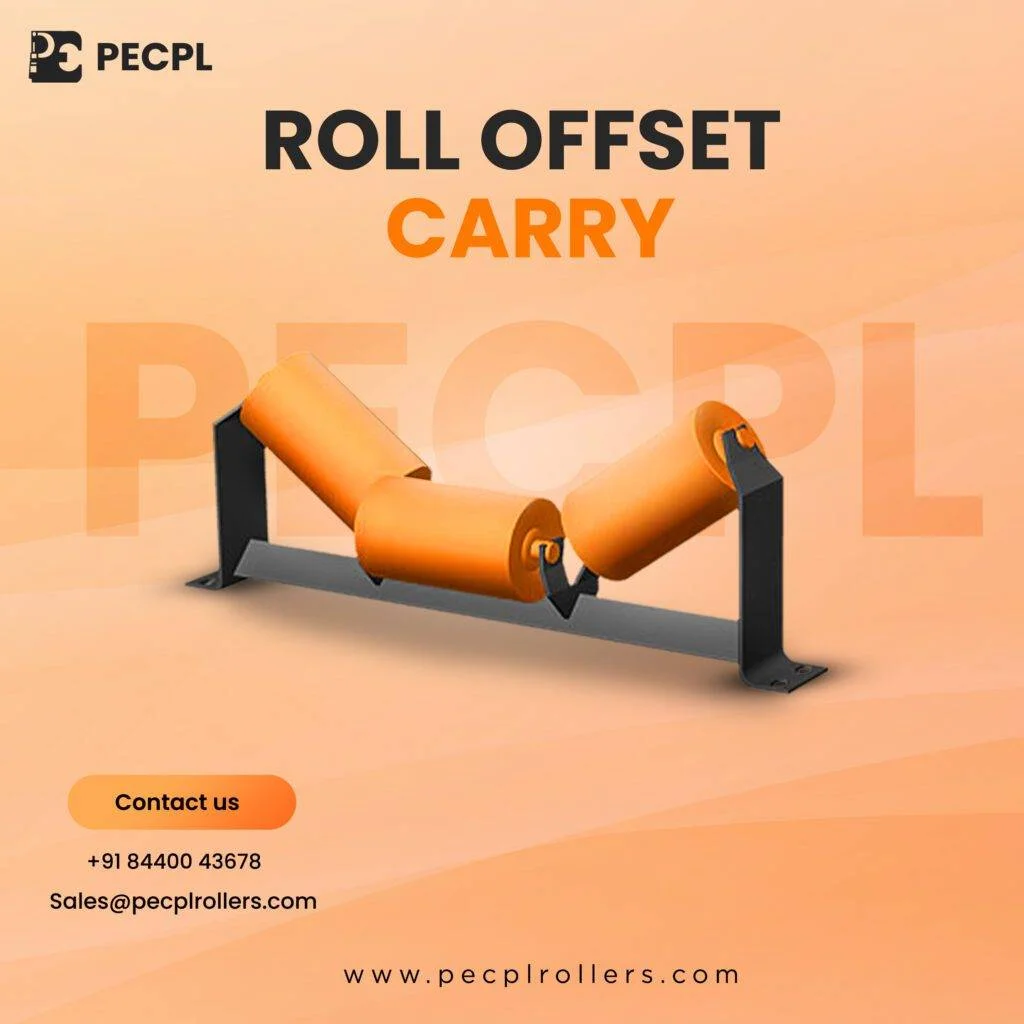

Roll Offset Carry

PECPL Conveyors & RollersIdler
Material:The Roll Offset Carry idler is typically made from high-quality steel, which provides strength and durability. The roller tube is made of either carbon steel or stainless steel, while the end caps are made of nylon or high-density polyethylene.
Application:Roll Offset Carry idlers are used in belt conveyor systems to support the conveyor belt and prevent sagging. They are typically used in applications where there are long distances between support points or where the conveyor belt is carrying heavy loads.
Structure:The Roll Offset Carry idler consists of a roller tube, end caps, and a shaft that is supported by bearings. The roller tube is offset from the centerline of the idler, which helps to reduce the friction between the conveyor belt and the idler. The end caps are designed to prevent material buildup and provide a smooth surface for the conveyor belt to slide over.
Bearing Type:The Roll Offset Carry idler typically uses sealed, double-row, spherical roller bearings, which provide high radial and axial load capacity.
Type:The Roll Offset Carry idler is available in a variety of types, including Troughing, Return, Self-Aligning, and Impact.
Transport Package:The Roll Offset Carry idler is typically packaged in wooden crates or pallets to protect it during transportation.
Samples:

Samples of the Roll Offset Carry idler may be available upon request.

|Request Sample

Customization:

The Roll Offset Carry idler can be customized to meet specific customer requirements, such as size, material, and bearing type.

|Customized Request

- +

Description

Basic Info.

The Roll Offset Carry idler is a type of conveyor idler that is used to support and guide the conveyor belt in belt conveyor systems. It is typically made from high-quality steel and consists of a roller tube, end caps, and a shaft that is supported by bearings.

Perfect Engineering Components Pvt. Ltd.
Origin
India
HS Code
8431390000

Product Description

Product Description

The Roll Offset Carry idler is designed to reduce the friction between the conveyor belt and the idler, which helps to prolong the life of the conveyor belt. It is suitable for use in applications where there are long distances between support points or where the conveyor belt is carrying heavy loads.

PECPL Rollers & Conveyors
Roller Properties

When selecting Roll Offset Carry idlers, it is important to consider the weight and size of the material being transported, as well as the speed of the conveyor belt. The idlers should be spaced appropriately to prevent sagging and ensure proper support of the conveyor belt.



Product Name Conveyor Roller
Product Name : Roll Offset Carry
Diameter
76-219mm
Length
190-3500mm
Color
OEM
Bearing No
6204, 6205, 6305, 6306, 6307, 630
Standard
ISO/DIN
Tube Material
Carbon Steel
Shaft Material
Cold Drawing Round Steel
Shaft Diameter
20mm, 30mm , 35mm, 40mm
Pipe Thickness
3mm,35mm, 4mm&OEM

Specification

Factory Price Impact Spiral Return Conveyor Roller for Material Handling Equipment PartsFactory Price Impact Spiral Return Conveyor Roller for Material Handling Equipment Parts
D(mm)
L(mm)
Bearing model
89
180,190,200,235,240,250,275,280,305,215,350,375,380,455,465,600,750,950,1150
204
108
190,200,240,250,305,315,360,375,380,455,465,525,530,600,700,750,790,800,950,1150,1400,1600
204 205 305 306
133
305,375,380,455,465,525,530,600,700,750,790,800,900,950,1000,1100,1150,1400,1600,1800,2000,2200
205 305 306
159
375,380,455,465,525,530,600,700,750,790,800,900,1000,1050,1100,1120,1150,1250,1400,1500,1600,1700,
1800,2000,2200,2500,2800,3000,3150
305 306 308
193.7
2200,2500,2800,3000,3150,3350
308 310
217
600,640,1050,1120,1600,1700,3150,3350
308 310
Factory Price Impact Spiral Return Conveyor Roller for Material Handling Equipment Parts
D(mm)
L(mm)
Bearing model
89
190,200,230,240,280,305,315,375,380,455,465,600,750,950,1150
204
108
190,200,240,250,305,315,375,380,455,465,525,600,700,750,800,950,1150,1400
205
133
305,350,375,380,455,525,530,600,700,790,800,950,1150,1400,1600
305
159
375,380,455,465,525,600,630,640,670,700,750,790,800,900,950,1050,1120,1150,1400,1600
306 308
Applications

Roll Offset Carry idlers are used in a variety of industries, including mining, quarrying, cement, and power generation. They are suitable for use in both indoor and outdoor environments.

Roll Offset Carry
Company Information
Roll Offset Carry – DELIVERING QUALITY SINCE 1989
PECPL Rollers & Conveyors
Bridging the gap between material handling and technology. Change the way of conveying by using Precisely made bulk material handling conveyor system. Customized according to your need.  Idler Roller manufacturer.
FAQ

What is the maximum load capacity of the Roll Offset Carry idler?

The maximum load capacity of the Roll Offset Carry idler depends on the size and type of the idler, as well as the bearing type used.

What is the maximum speed of the conveyor belt that the Roll Offset Carry idler can support?

The maximum speed of the conveyor belt that the Roll Offset Carry idler can support depends on the size and type of the idler, as well as the bearing type used.

Can the Roll Offset Carry idler be used in harsh environments?

Yes, the Roll Offset Carry idler is designed to withstand harsh environments and is suitable for use in both indoor and outdoor applications.
